Detailed description

Applications

• 155Mbps ATM
• 622 Mbps ATM
• 1000Base-T
• 10Gbase-T

Standards

• IEC61156-5
• EN50288-4-1
• GB/T18015

Features of product

• Bandwidth comply with the frequency of 600 MHz of category 7;
• A variety of sheaths can be selected according to different kinds of environment in order to make the best of cable’s function;
• Specially designed for 10-Gigabit Ethernet;
• Comply with ROHS standard.

Physical Electrical Characteristics

• DC resistance (max): 7.5Ω/100m at 20¡æ;
• Mutual capactitance (max): 5.6nF/100m;
• Unbalanced capacitance (max): 330pF/100m;
• Dielectric strength between conductors (min): 2.5kV/2s;
• Impedance: 1-100MHz   100±15Ω , 100-600MHz  100±22Ω;
• Phase velocity (max): 536ns/100m @100MHz;
• Differential phase delay (max): 30ns/100m;
• Operating temperature: -20~+60¡æ;
• Permitted bend radius: 15 times diameter of the cable.

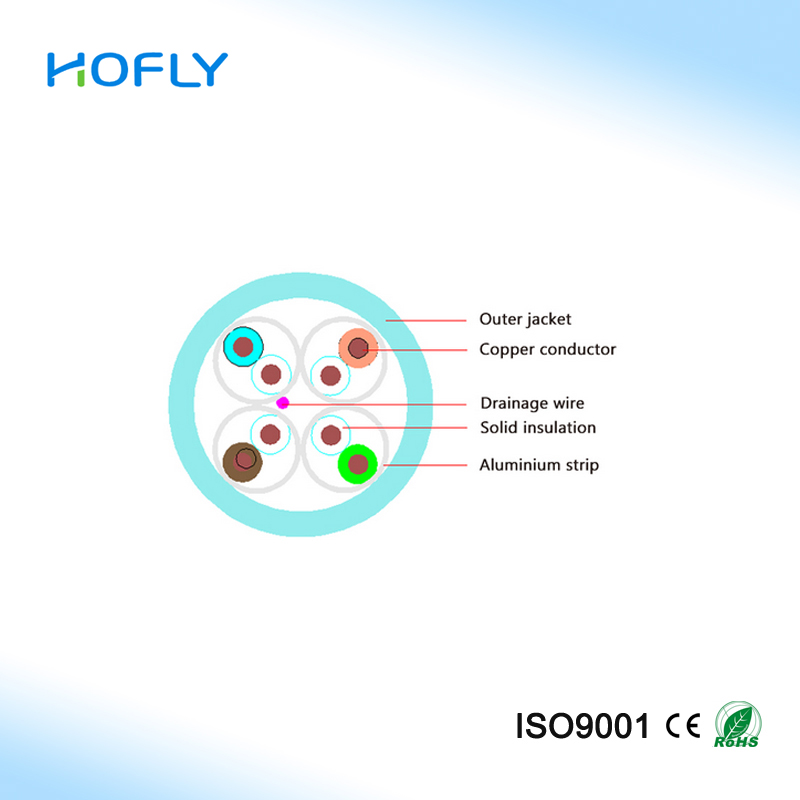

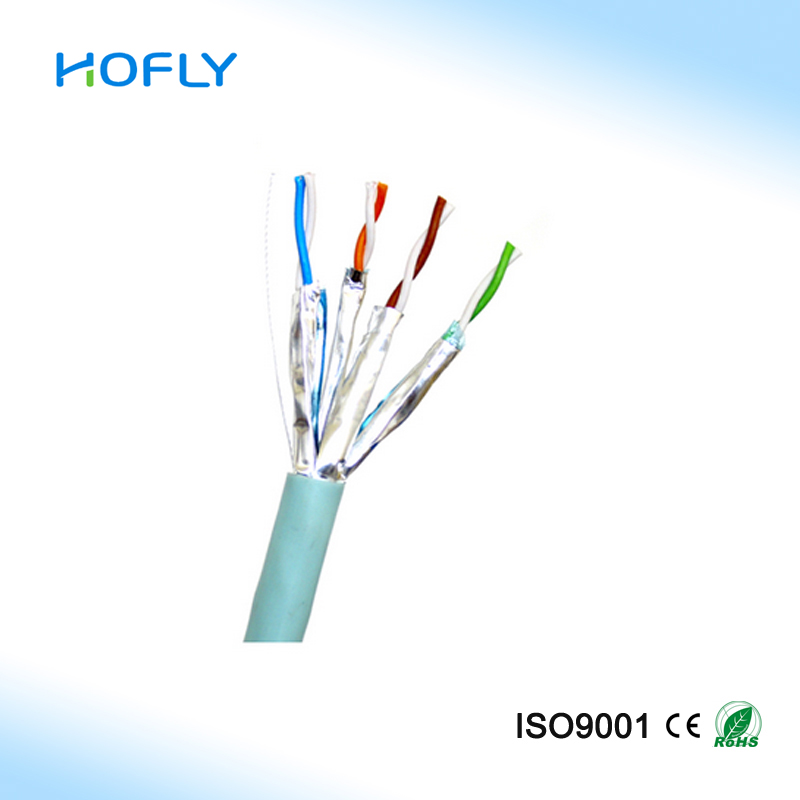

Material instruction

• Conductor: 23AWG Copper;
• Insulation: Solid HDPE or Skin-Foam-Skin PE;
• Sheath: Environment Friendly PVC or Flame resistance PE or low smoke zero halogen polyolefin (LSZHP);
• Shield 1: One side plastic coated aluminium strip;
• Shield 2: Tinned copper wire braid.

Transmission Performance
