Coaxial CCTV,CATV Cable

Packaging & Delivery

Packaging Details

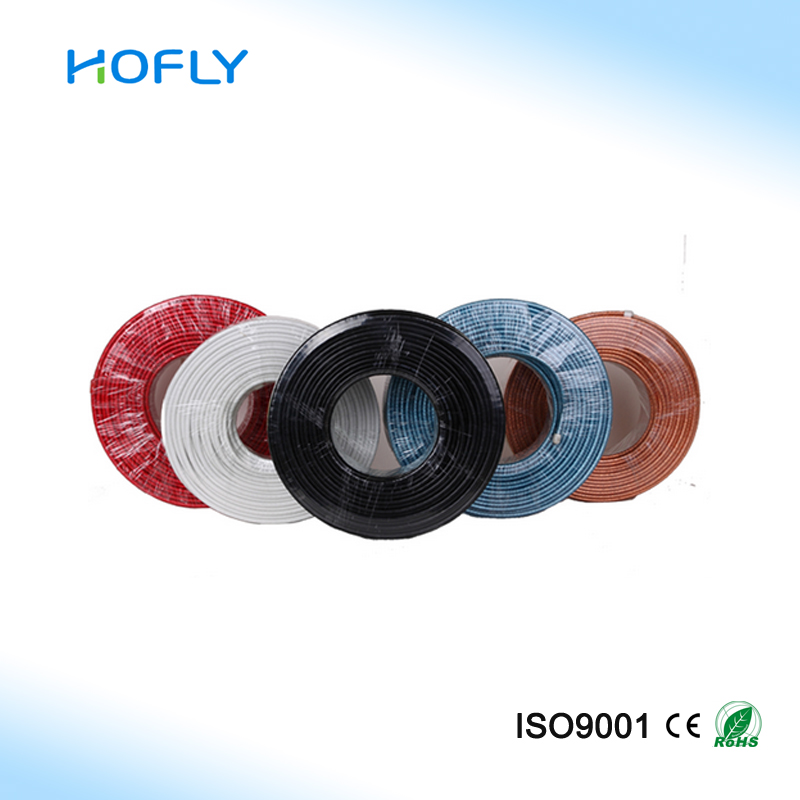

RG6 Cable / RG6 CCTV Cable:

1). 100M/Coil, 6 Coil/Carton

2). 100M/Paper Reel, 100M/Plastic Reel,

200M/Palstic Reel, 305M/Plastic.

305M/Wooden Reel, 500M/Wooden Reel

3). Reel In Box, With Pallet

500ft Reel In Box.

1000ft/Reel In Box.

Color Box and OEM Package available.

20" Container Full Load: 350-420km.

40" Container Full Load: 650-810km

Port

Ningbo / Shanghai Port

Lead Time :

Shipped in 25 days after payment

Product Description

high quality RG58 RG59 RG11 RG213(ROHS,UL,CE,ISO9001 Approved)

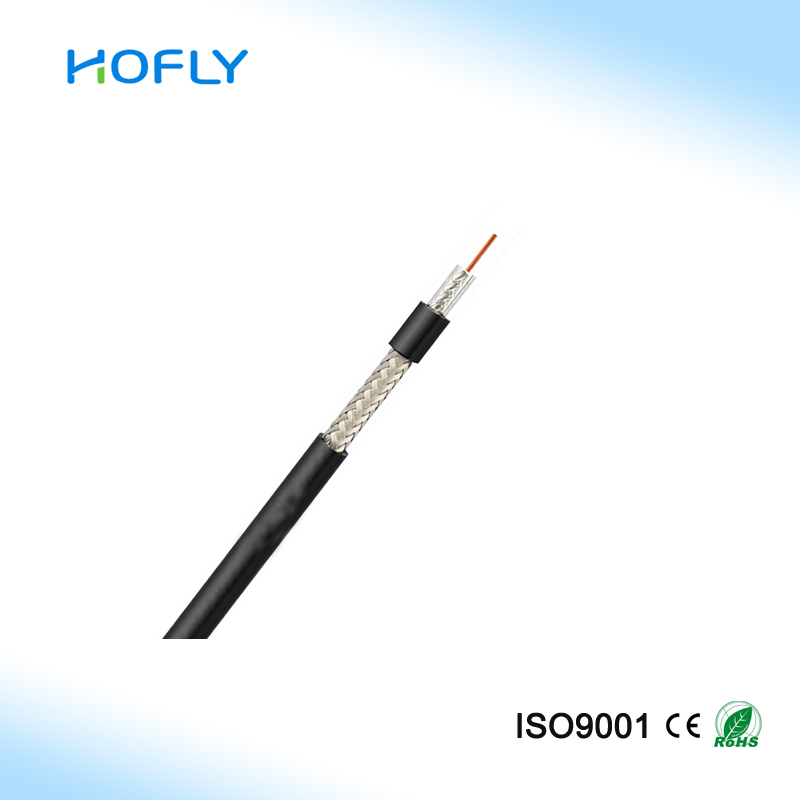

RG6 Coaxial Cable:

RG6 : 1.02CCS+4.57FPE + Al Foil/blue/bonded +96*0.12AL+6.9PVC(Black)

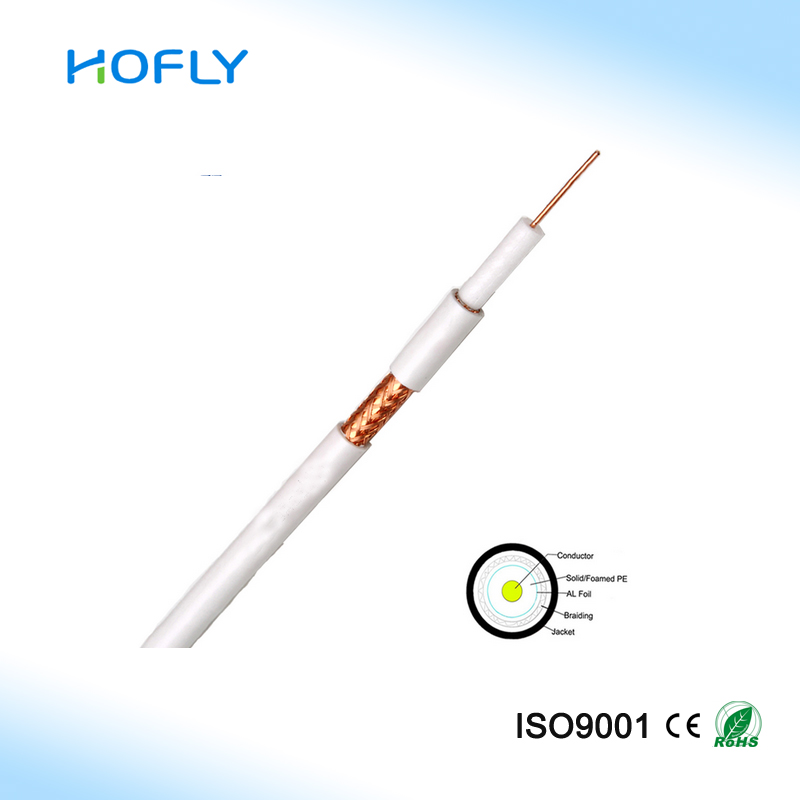

RG6 CCTV Cable:

RG6 : 1.02CCS21%+4.57FPE + Al Foil/blue/bonded +128*0.12CCA+6.9PVC White

RG6 With Power:

RG6 : 1.02CCS21%+4.57FPE + Al Foil/blue/bonded +128*0.12CCA+6.9PVC White

Power: 2*7*0.37CCA

Note: 96-128 net braiding available, 0.12-0.16mm braid wire available

Inner Conductor (mm): 1.02± 0.01

Dielectric (mm): 4.57± 0.10

Outer Conductor (mm): 5.80

Jacket (mm): 6.90± 0.10

ODM & OEM Service Available.

Detailed Images

Applications For Coaxial Cable RG6:

1) CATV-community antenna television;

2) CCTV-closed-circuit television

3) DBS-direct broadcasting satellite.
