Detailed description

European quality BT3002 16 Core multi-core coaxial cable

BT3002 16 Core multi-core coaxial cable

Product Specification:

Telecom Coax Cable BT Series
	The British Telecom types BT3002 suitable for the interconnection of telecommunication transmission equipment. They are mainly used for indoor installation in the transmission equipments for the digital telephone exchange system.They also available in both single and multi-core versions, in standard PVC and LSOH versions

Type	Imp.Ohms	Inner Conductor(mm)	Dielectric (mm)	Shield	Outer Sheath	O/D mm
BT2001	75	7/0.2 BC	FPE	TC	PVC	4.40
BT2002	75	7/0.2 BC	FPE	2×TC	PVC/LSZH	5.10
BT2003	75	1/0.61 BC	PE	2×TC	PVC/LSZH	6.70
BT3002	75	1/0.31 BC	PE	2×TC	PVC/LSZH	3.55
BT3002*8 Core	75	1/0.31 BC	PE	2×TC	PVC/LSZH	16.0
BT3002*16 Core	75	1/0.31 BC	PE	2×TC	PVC/LSZH	21.0

Miniature Coax Cable

Mini RG59(1855A)

Sub-Miniature 59/U(1865A)

RG174 mini-coax

RG178 mini-coax

RG179 mini-coax

RG188 A/U

0.81 mm Mini-Coax

1.13 mm Miniature Coax

1.32 mm Miniature Coax

1.37 mm Miniature Coax

1.48 mm Miniature Coax

Miniature Coax Cable » Mini RG59(1855A)

Mini RG59(1855A) is the HDMI(High Definition Multimedia Interface) cable. HDMI cable to transmit through a high-definition, all-digital audio and video content. HDMI is the future direction of HDTV (high definition television).
• Mini RG59 have 23 AWG solid bare copper conductors, Foamed HDPE insulation, 100% bonded foil shield and 95% tinned copper braid shield, PVC jacket. • Return Loss: 5MHz to 1600MHz>23 dB ; 1601MHz to 4500MHz >21 dB. • Out jacket following colors: brown, red, orange, yellow, blue, violet, gray, white, black, aqua, rose and green

Type	Imp.Ohms	Inner Conductor(mm)	Dielectric (mm)	Shield	Outer Sheath	O/D mm
MiniRG59	75	1/0.58 BC	2.60 FPE	Boneded AL/P+95%TC	PVC	4.10
MiniRG59×3	75	1/0.58 BC	2.60 FPE	Boneded AL/P+95%TC	PVC	11.20
MiniRG59×4	75	1/0.58 BC	2.60 FPE	Boneded AL/P+95%TC	PVC	12.22
MiniRG59×5	75	1/0.5 BC	2.60 FPE	Boneded AL/P+95%TC	PVC	13.80
MiniRG59×8	75	1/0.58 BC	2.60 FPE	Boneded AL/P+95%TC	PVC	16.20
MiniRG59×10	75	1/0.58 BC	2.60 FPE	Boneded AL/P+95%TC	PVC	20.22
MiniRG59×12	75	1/0.58 BC	2.60 FPE	Boneded AL/P+95%TC	PVC	20.96
MiniRG59×16	75	1/0.58 BC	2.60 FPE	Boneded AL/P+95%TC	PVC	23.27

Packing:

1) Packing Lengths:250m/wooden drum

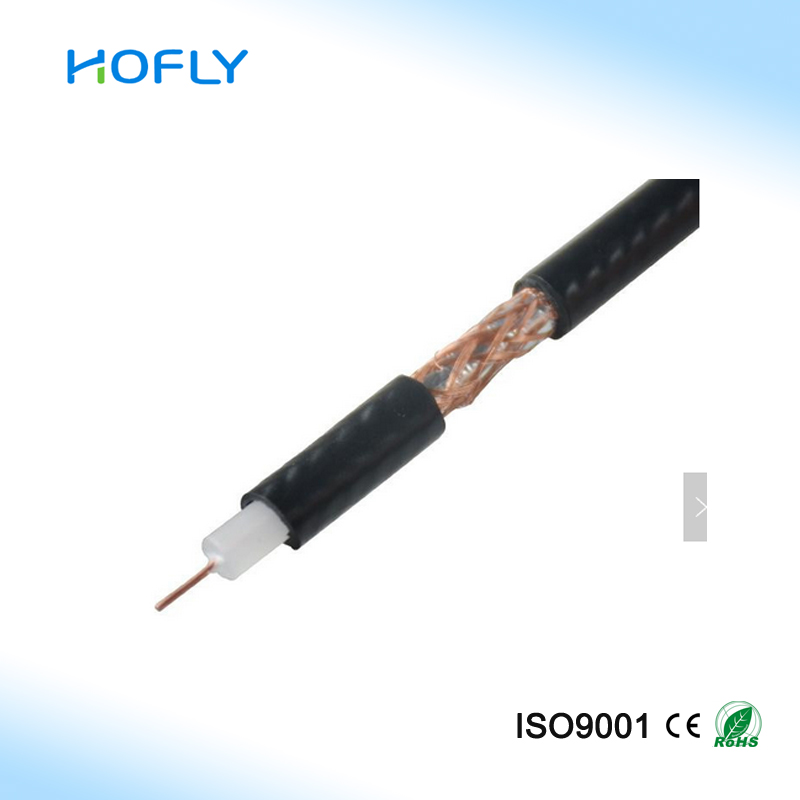

Cable Picture and Package
