SPECIFICATIONS

Conductos

bare copper

Insulation

Outer Jacket with protective nylon sleeve. (color optional)

Connectors

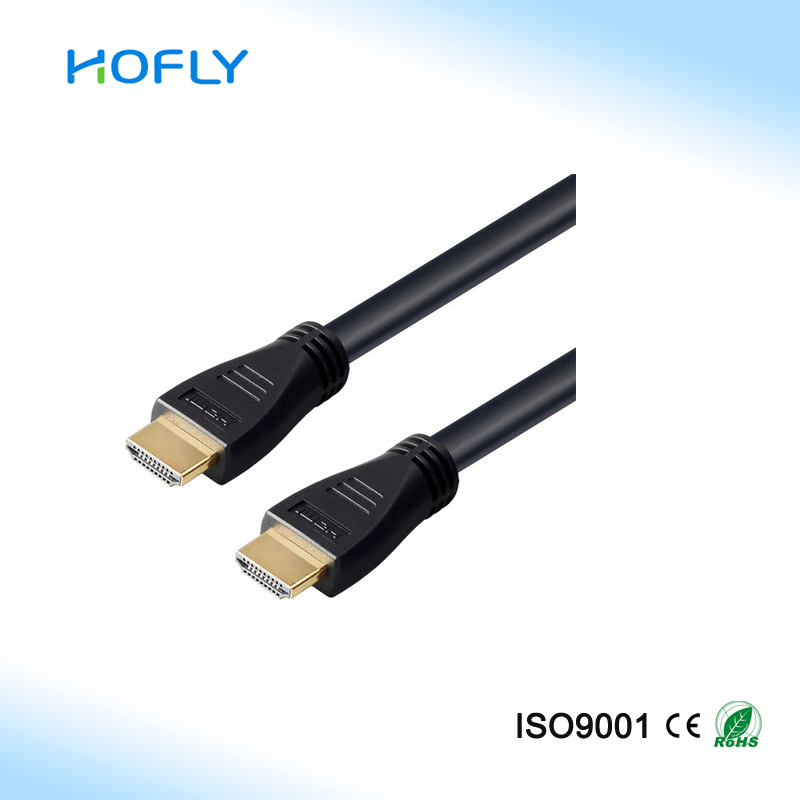

HDMI Type A Male to Type A Male

Available lengths

1-5m

Available terminations

HDMI,19PIN,Male to Male, up to 1440P

Available gauge

 OD:7.3/6.0mm

Certification

RoHS,UL,CE

Shielding

AL+ ML+ Braiding+ Ferrite(optional)

AWG

28/30

ELECTRICAL

Quality Control

operation according to regulations & rules in ISO9001:2008

Voltage

DC300V 5M ohm/10ms

Insulation Resistance

10M min

Contact Resistance

2 ohm max

Working Temperature

-25C-80C

Data transfer rate

10.2Gbps Max

Differential Impedance

100±10Ω(TDR)

FEATURES

1, Center conductor: high quality digital signal delivered by oxygen-free copper

2, Insulation: Using foamed PE as the insulation, ensure image quality and transmit image signal with stability.

3, Inner shield:100% Aluminum/Mylar foil shield, prevent high frequency noises and interference

4, Outer shield:95% copper braid shield, prevents most low frequency noises and interference.

5, function: suitable for HDTV, home theater, DVD player,projector,PS3,XBOX 360 and other HDMI devices.

6, High density triple shielding for maximum rejection of EMI and RFI

7, Transfer speed: 10.5Gbps

8, connectors: 24K gold-plated to ensure superior signal transfer and lifetime of maximum performance

9, Color optional: Pearl golden, Matter black, Silver, Golden, Shiny black, white porcelain, black porcelain, chrome
