Detailed description
Specifications
1.1 -288 Core
2.LSZH jacket drop cable
3.G657 FTTH fiber optical cable
4.Self-support drop cable

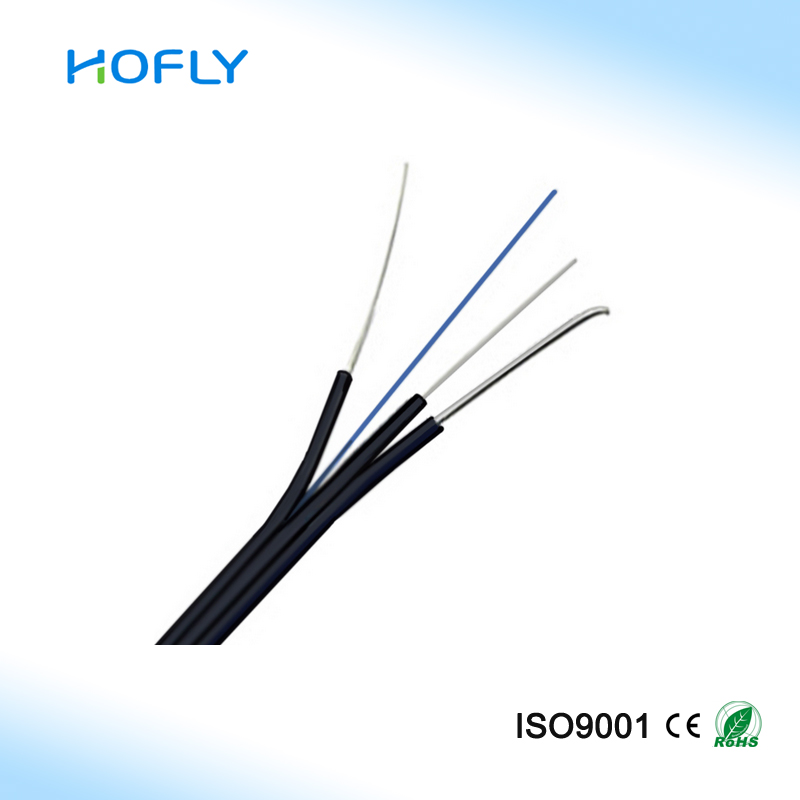

G657A G.652D 1 2 4Core Ftth Drop Cable Outdoor Optical Fiber
Product Description
Self-supporting butterfly drop cable (GJYXFCH/GJYXFDCH) is made from the disc into the optical fiber cable outer in add a stout rope suspension wire.
1.Thick wire
2 Not metal or metal strengthening element
3.Fiber core or optical fiber belt (G657, A2) (1-4 core)
4.Low smoke zero halogen resistance (LSZH) sheath

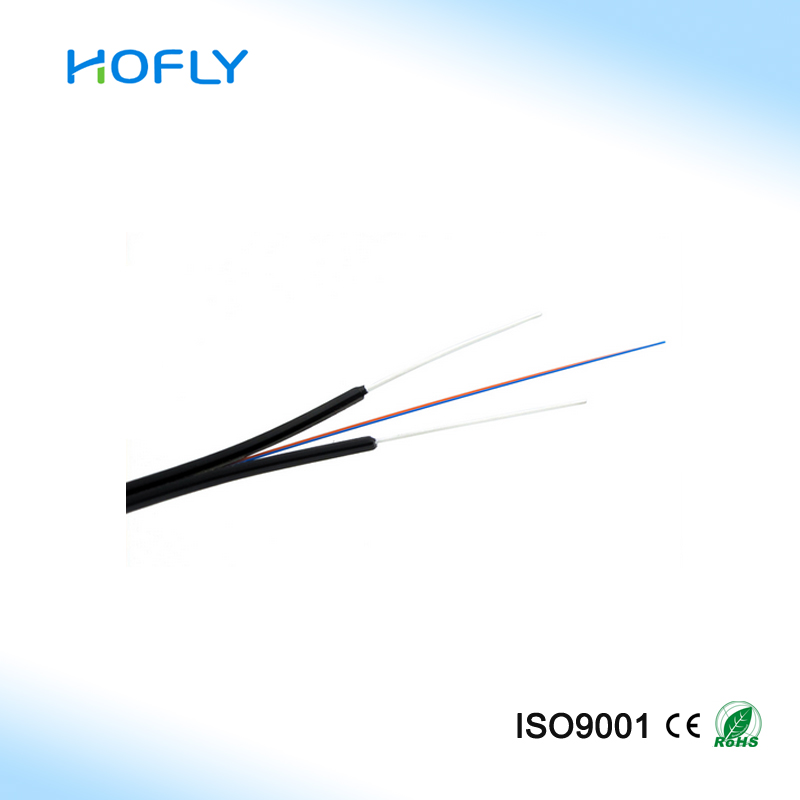

G657A G.652D 1 2 4Core Ftth Drop Cable Outdoor Optical Fiber
Technical Parameters:
|
Cable Count |
Out sheath |
Weight |
Minimum allowable Tensile Strength |
minimum allowable Crush Load |
Minimum Bending Radius |
Storage |
|||
|
(MM) |
(KG) |
short term |
long term |
short term |
long term |
short term |
long term |
(°C) |
|
|
12 |
3.0*9.0 |
21.7 |
600 |
200 |
1000 |
300 |
20D |
10D |
40 |
|
Optical Characteristics: |
||||
|
Fiber Sort |
Multimode |
G.651 |
A1a:50/125 |
Graded-index fiber |
|
A1b:62.5/125 |
||||
|
Singlemode |
G.652(A,B,C) |
B1.1:Conventional fiber |
||
|
G.652D |
B2: Zero dispersion shifted |
|||
|
G.655 |
B1.2 :Cut-off wavelength shifted |
|||
|
G.657(A1,A2 ,B3) |
B4: Main technical data for positive |
|||
