Detailed description

GYTA fiber optic equipment g652 steel central strength member fiber optic cable meter price

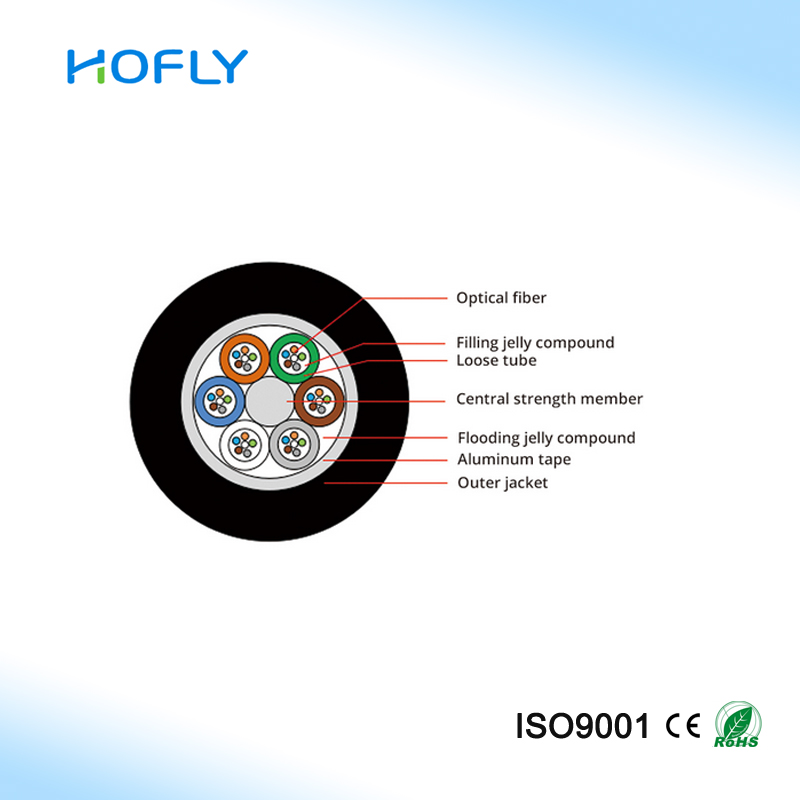

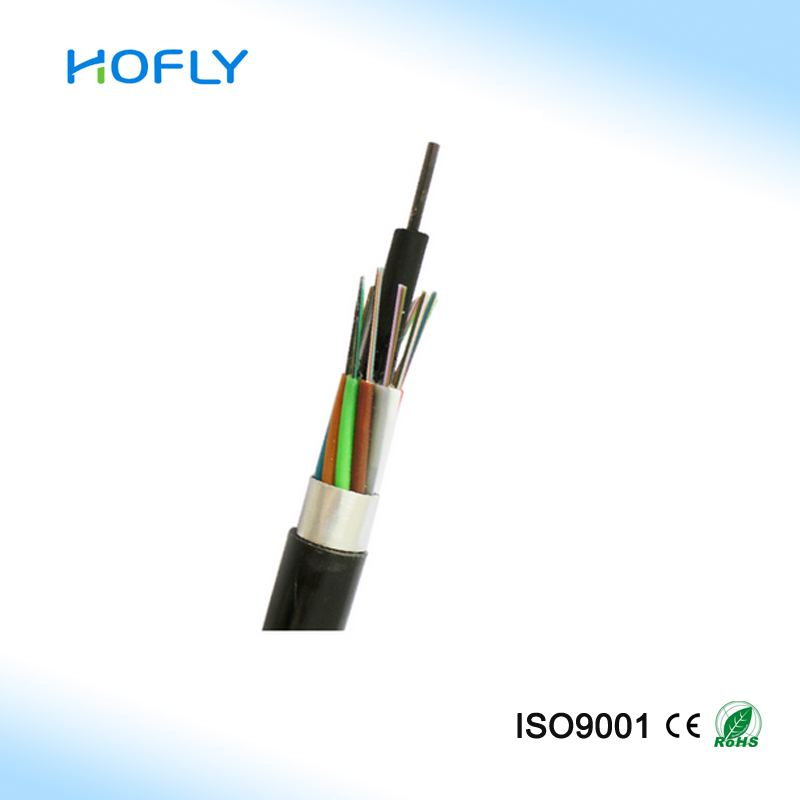

GYTA is used for duct or aerial applications. These aluminum tape armored cables are suitable for installation for long haul communication and LANs, especially suitable for the situation of high requirements of moisture resistance. It is the stranded loose tube fiber optic cable with compact structure; the cable jacket is made of strong Polyethylene; High strength loose tube that is hydrolysis resistant. Hongan provides GYTA from 4 fiber cores to 288 fiber cores. Both single mode type and multimode types are available. We also provide Customized Service such as fiber number, fiber color and cable length, etc.

Item

Parameter
Fiber-G652D
Attenuation Coefficient
1310nm dB/km ≤0.4


1550nm dB/km ≤0.3
Outer jacket
Material
MDPE

Color
Black
Min. bending radius
Static
10 times cable diameter

Dynamic
20 times cable diameter
Repeating bending
Load:150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage.

Tensile performance
Short term
1500N The addition attention≤0.1dB,fiber strain ≤0.15%
Crush
Short term
1000N/100mm The addition attention≤0.1dB
Torsion
Load:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage.
Impact
Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage.
