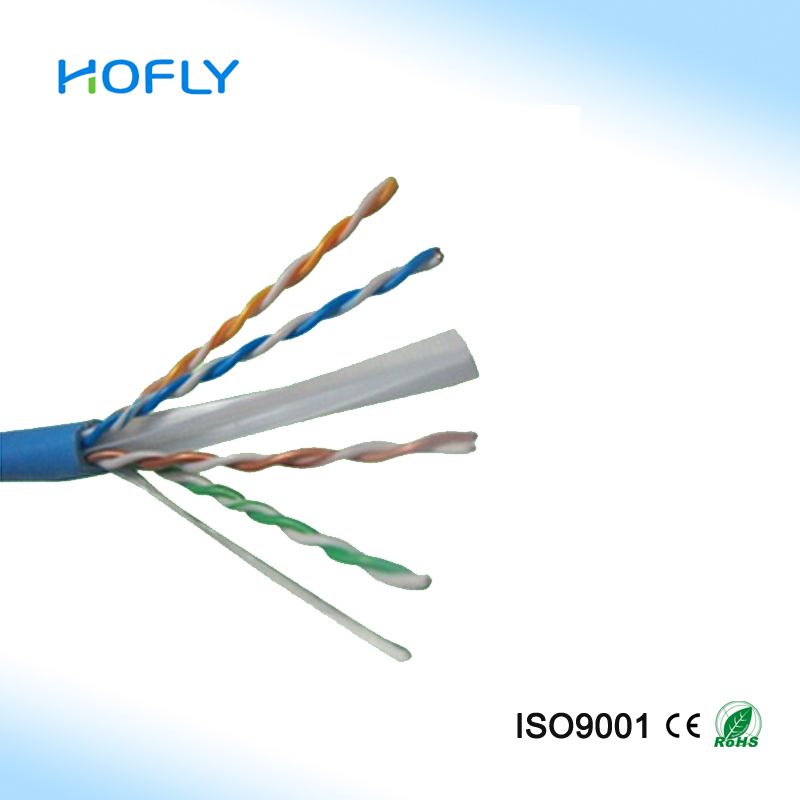

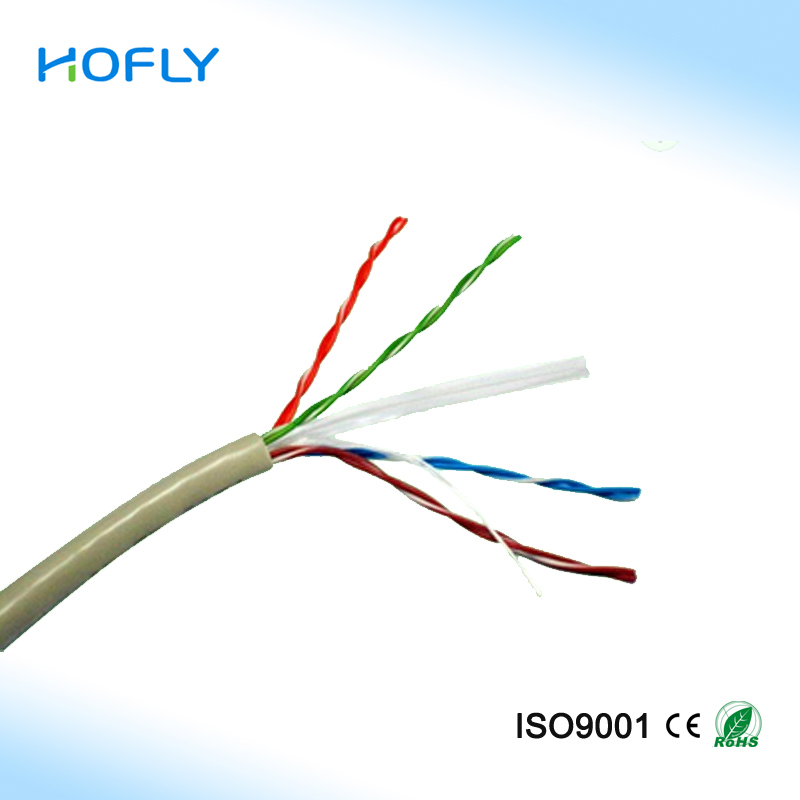

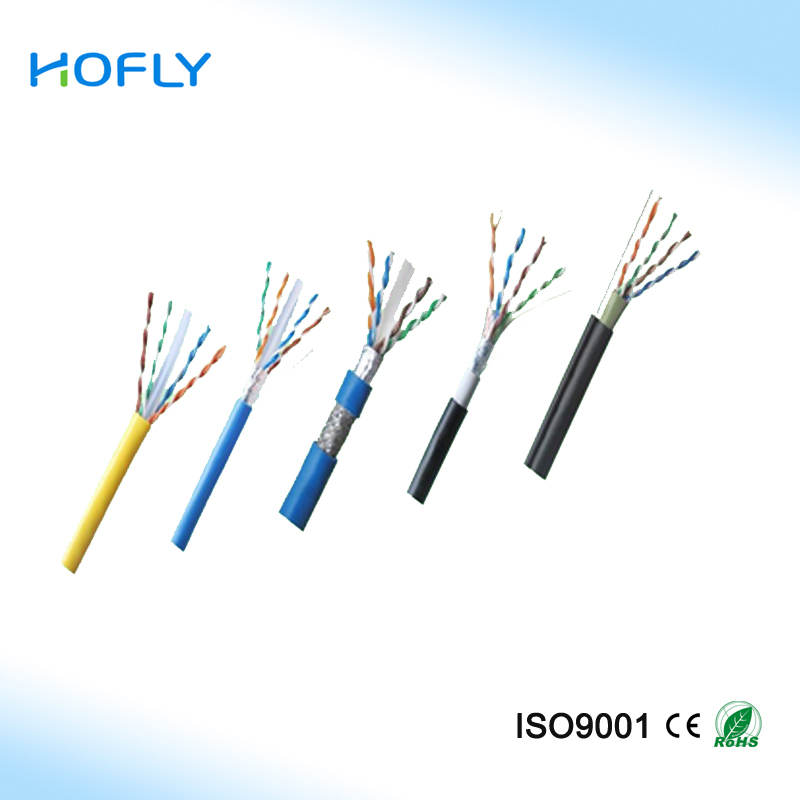

Construction

Center Conductor

0.57mm+0.01mm Solid Copper/Copper Clad AL(CCA)/Copper clad steel(CCS)

Dielectric

1.02+0.05mm PE

cross slot

 PE

Jacket

6.1+0.1mm PVC/LSZH

Jacket Color

Black/White or per customers' request

Dielectric strength

2.5KV dc-2seconds

Conductor resistance

Max 7.0ohm/100M at 20°C

Max. ring resistance

16.8 ohm/100M at 20°C

Max. mutual capacitance

560 pf/100M

Max. capacity unbalance

330 pf/100M

Standard impedance

100±15 ohm between 1Mhz and 100Mhz

Minimum bending radius

60mm

Working temperatures

-20~60°C

Test on DTX1800(USA)

100% pass 90mTest

Frequency (Mhz)

RL

(dB)

ATT

(dB/100)

NEXT

(dB)

PS.

NEXT

(dB)

ELFEXT

(dB)

PS-ELFEXT

(dB)

1

20

2.04

74.3

72.3

67.8

64.8

4

23.01

3.81

65.3

63.3

55.8

52.8

8

24.52

5.35

60.8

58.8

49.7

46.7

10

25

5.99

59.3

57.3

47.8

44.8

16

25

7.6

56.2

54.2

43.7

40.7

20

25

8.52

54.8

52.8

41.8

38.8

25

24.32

9.75

53.3

51.3

39.8

36.8
