Item
|
|
Parameter
|
Physical Electrical Characteristics
|
DC resistance (max)
|
7.5Ω/100m at 20¡æ
|
Mutual capactitance (max)
|
5.6nF/100m
|
|
Unbalanced capacitance (max)
|
330pF/100m
|
|
Dielectric strength between conductors (min)
|
2.5kV/2s
|
|
Impedance
|
1-250MHz 100±15Ω
|
|
Differential phase delay (max)
|
45ns/100m
|
|
Operating temperature
|
-20¡«+60¡æ
|
|
Permitted bend radius
|
10 times diameter of the cable.
|
|

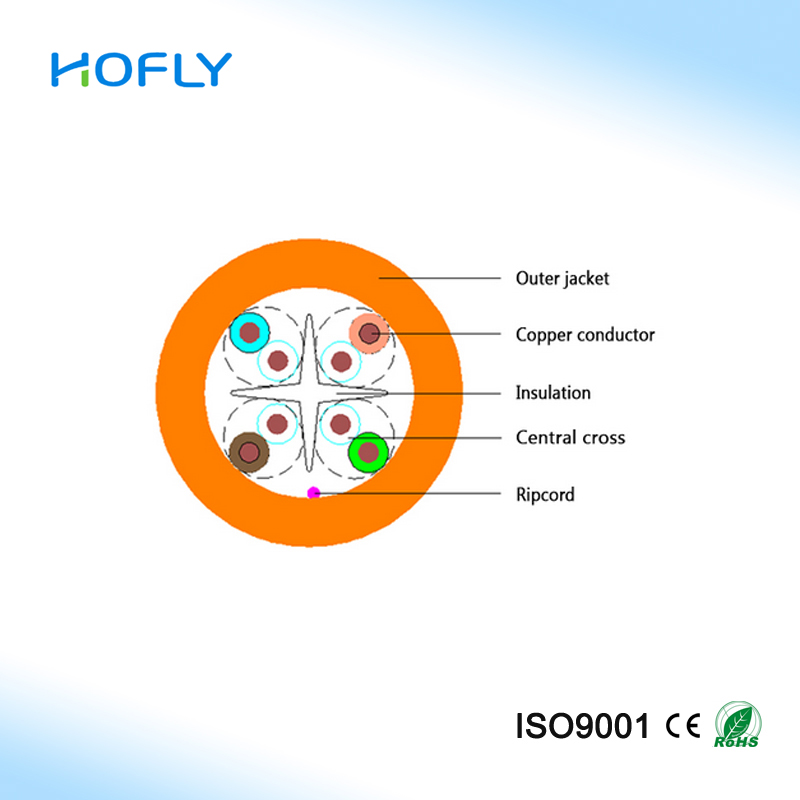

Material
|
Conductor
|
23AWG Copper
|
Insulation
|
Solid HDPE or Skin-Foam-Skin PE
|
|
Sheath
|
Environment Friendly PVC or Flame resistance PE or low smoke zero halogen polyolefin (LSZHP)
|
|
Application
|
Standard
|
ISO/IEC11801
|
ANSI/TIA/EIA-568-B.2
|
||
YD/T1019
|
||
UL444
|
||
Applications
|
10Base-T4
|
|
100Base-TX
|
||
100Base-VG-ANYLAN
|
||
155Mbps ATM
|
||
622 Mbps ATM
|
||
1000Base-T
|
||
1000Base-TX
|
||
10Gbase-T
|
