*10 Base-T

*100 Base-T4

*100 Base-TX

*100 Base-VG-ANYLAN

*155 Mbps ATM

*622 Mbps ATM

*1000 Base-T

*ISO/IEC 11801

*ANSI/TIA/EIA-568-C

*YD/T 1019-2013

*UL 444

*IEC 61156

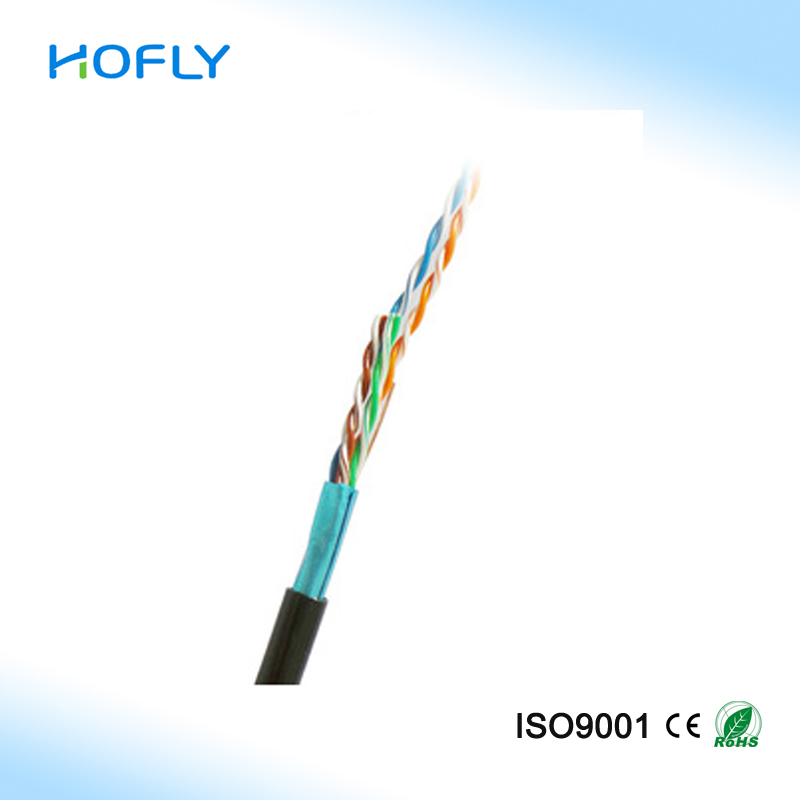

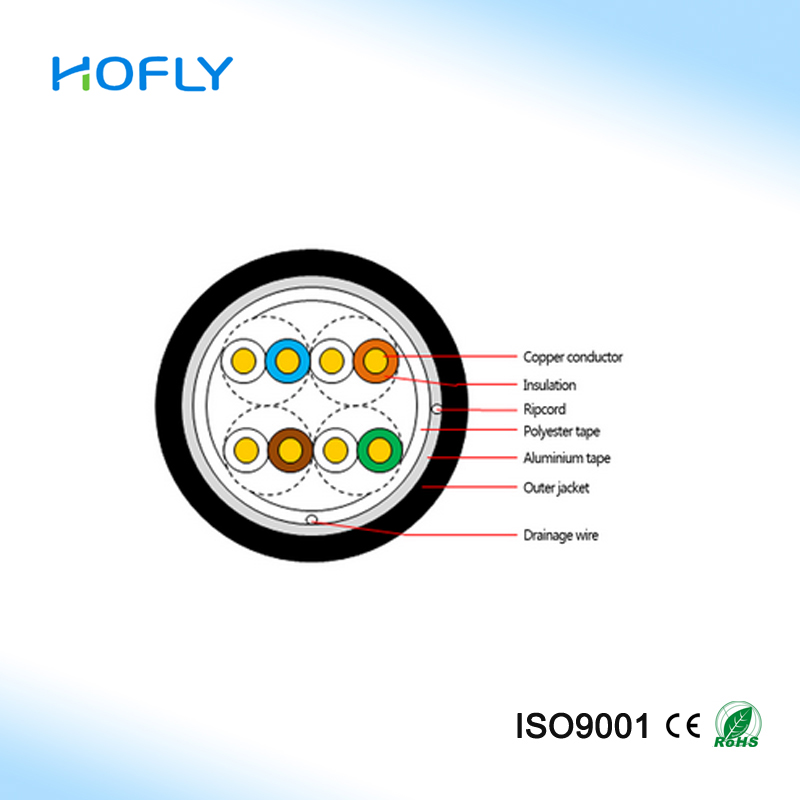

*conductor : 24AWG copper

*insulation : solid HDPE or skin-foam-skin PE

*sheath : environment friendly PVC or flame retardant PE or low smoke zero halogen polyolefin (LSZHP)

*wrapping tape : polyester tape

*shield : single plastic coated aluminum foil shielded

*drainage wire : tinned copper wire

*more bandwidth excess than 100 MHz standard required

*comply with ROHS standard

*excellent shielding performance, effectively prevent the interference of external signals

*PE outer sheath,moisture-proof, ultraviolet-proof

*the products of special outer sheath or purpose can be designed according to customer's demands(such as anti-rodent cable)

*D.C resistance (max) : 9.5 Ω/100 m at 20 celsius degree

*mutual capacitance (max) : 5.6nF/100m

*unbalanced capacitance (max): 160pF/100m

*dielectric strength between conductors (min): 2.5kv/2s

*impedance : 1-100 MHz 100±15Ω

*differential phase delay (max) : 30ns/100m

*permitted bend radius : over 8 times diameter of the cable
