Detailed description

Product name: CAT5E UTP lan cable monitoring POE cable
Wire core: 0.5MM pure copper
Length: code 305 meters. The actual is 305 meters
Material: All copper wire diameter (without any iron. Steel)
Sheath material: new environmental protection material (outer sheath PE inner sheath PVC)
Speed: The transmission of this product is within 160 meters
Storage temperature -30-65 (°C) Tensile strength 1000 (N)
Compressive strength withstand voltage applicable range network transmission
Suitable for: Family. Company. School. Small size project, netcom. Telecommunications sector and other network transmission.

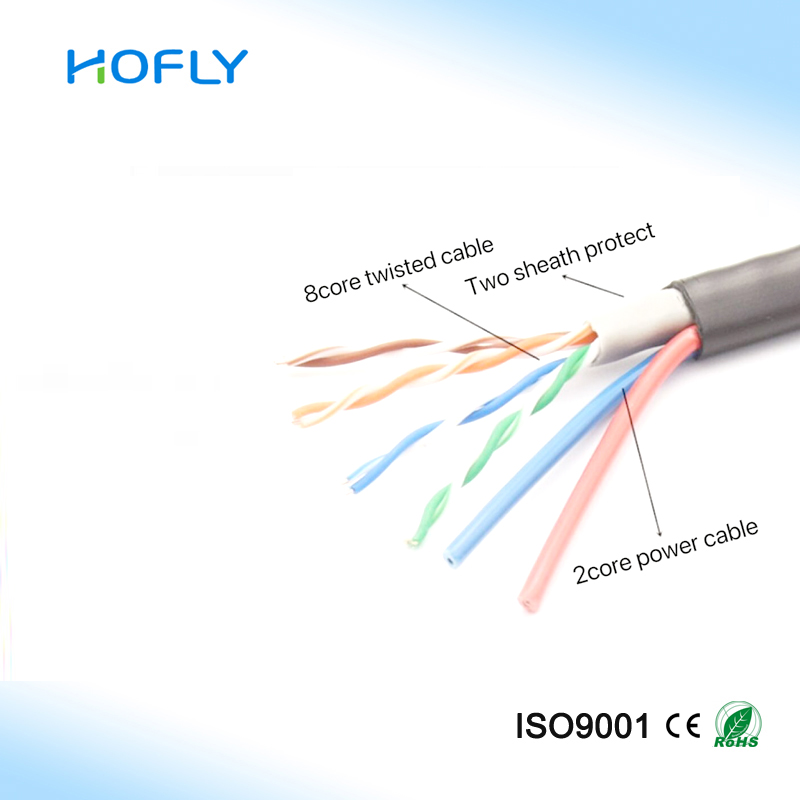

Product Structure:

¡ñ Conductor: 0.5mm solid oxygen-free copper new material conductor
¡ñ Insulation: 0.9m in HDPE
¡ñ Number of lines: 8 cores 4 pairs of twisted pairs
¡ñ Sheath: new environmental protection material (outer sheath PE sheath PVC), 5.6-5.8mm
¡ñ Meters :305 meters(1000ft)

Product performance:

¡ñ Transmission characteristics: according to TIA/EIA-568 and YD/T1019-2001, the longest linear transmission distance is 100 meters
¡ñ Implementation standards: UL758,UL1581,UL 444,TIA/EIA-568,CSA C22.2, ISO/IEC 11801,YD/T1019-2001

Product application:

¡ñ Digital communication level pair cable, applied to the wiring between the work area communication lead end and the distribution frame of the handover in the building cabling system, as well as the wiring between the user communication lead end and the distribution frame of the residential cabling system, satisfied with 100MHz data communication. Color coded according to ANSI/TIA/EIA-568-B color code.
¡ñ Suitable for EIA/TIA 568A/B general sequence
¡ñ1000BASE-T Ethernet (1000Mbps)
¡ñ 155MBPSATM, 100MBPSTP-PMD, 100Mbps Ethernet (100BASE-T) and other systems with transmission rates up to 622Mbps ¡ñ10Mbps Ethernet
¡ñ4Mbps and 16Mbps token ring networks
¡ñ Support voice, data and most media high-speed transmission
