Detailed description

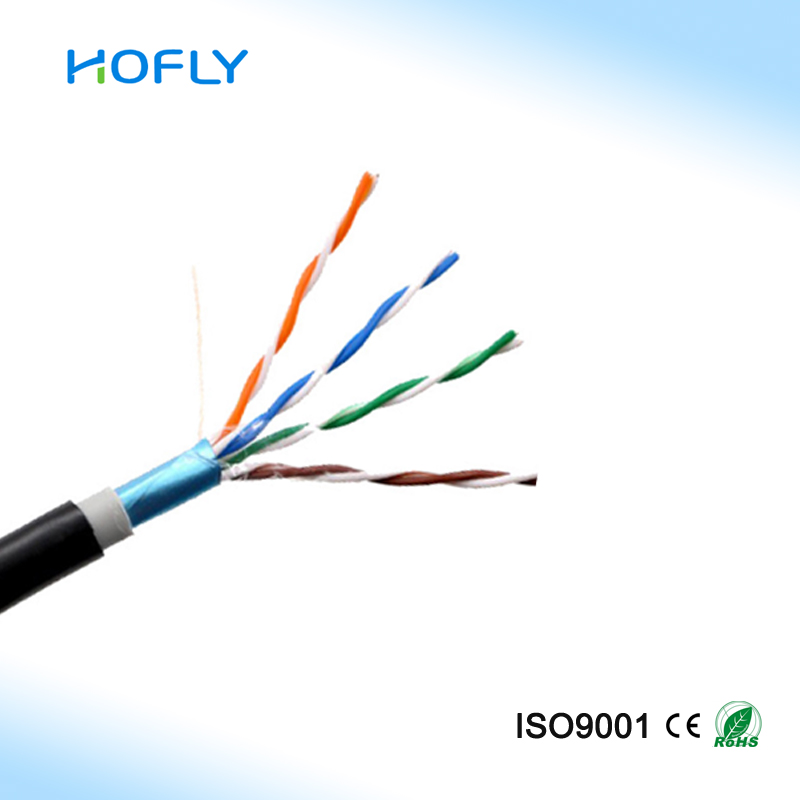

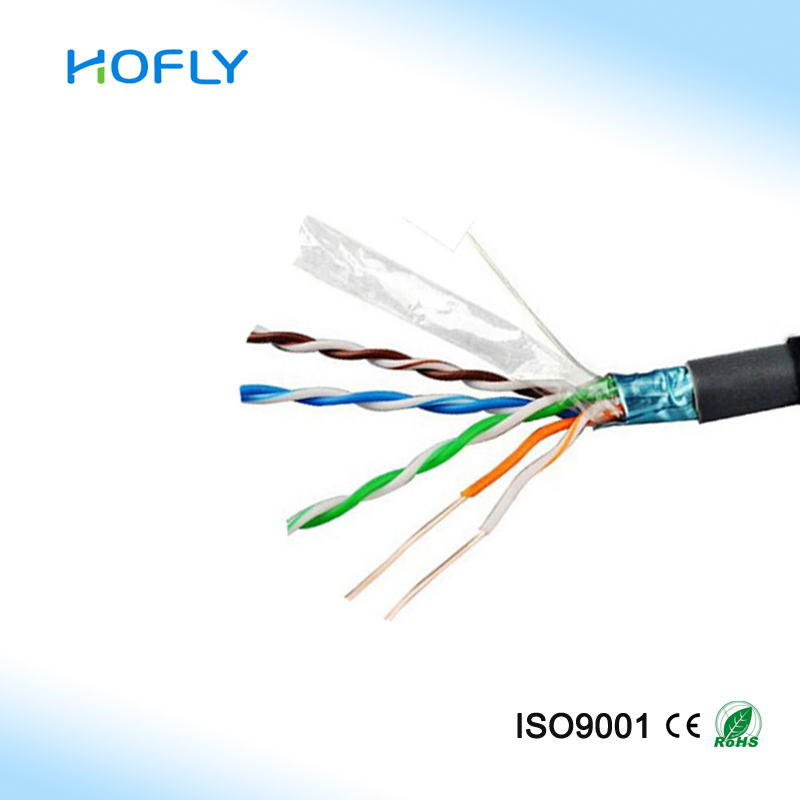

CAT5E FTP 24AWG 0.5mm Bare Copper Ethernet Cable Outdoor with HDPE JACKET
| Product Name | Cat5 FTP cable | |
| Inner Conductor | Material | BC |
| Diameter | Solid 0.5mm ( 24AWG ) | |
| Insulation ( Dielectric ) | Material | PE (Polyethylene) |
| Thickness | ≥ 0.21mm | |
| Diameter | 1.80mm ± 0.01mm | |
| Shielded Layer | Material(FTP) | Al Foil |
| Twisted Pair | N/A | Pair 1: Blue, White/ Blue |
| Pair 2: Orange, White/ Orange | ||
| Pair 3: Green, White/ Green | ||
| Pair 4: Brown, White/ Brown | ||
| Outer Jacket | Material | PE |
| Thickness | ≥ 0.65mm | |
| Nominal O.D | 6.50mm ± 0.10mm | |
| Drain Wire | TC 0.4mm | |
| Reference Standard | Category 5E UL444, ANSI/ TIA/ EIA 568B & ISO/ IEC11801 Stanard | |
| Rated Temperature | -20¡æ-70¡æ | |
| Supports Transmission | Digital and analogue voice, data and video signal | |
