Detailed description
1. CAT5E SFTP cable complies with Category 5E UL444, ANSI/ TIA/ EIA 568B and ISO/ IEC 11801 Standerd.
2. Support Transmission of digital and analogue voice, data and video signal.
3. Rated Temperature: -20¡æ to 75¡æ.

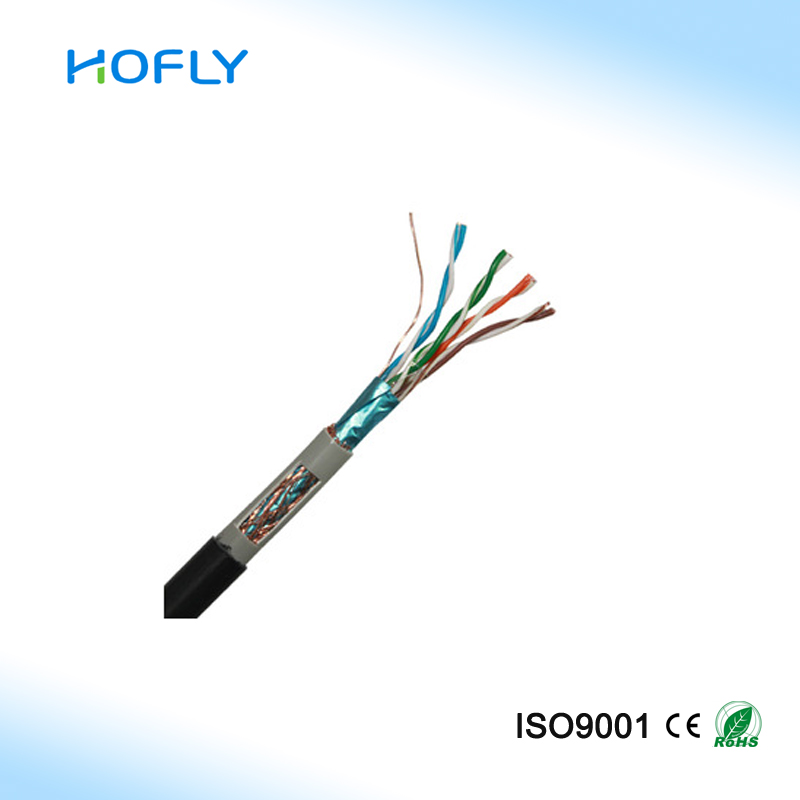

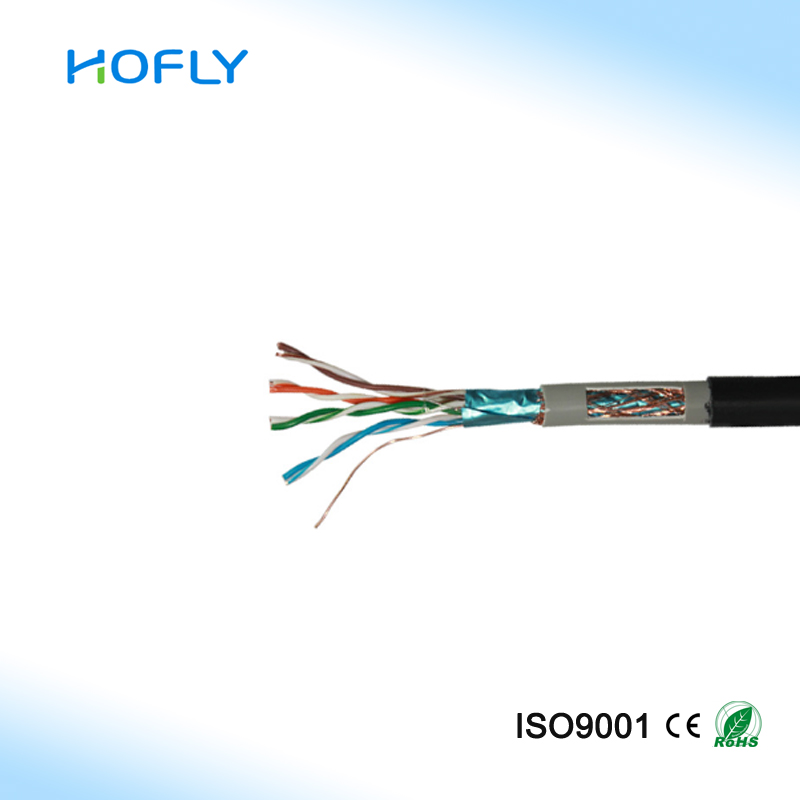

| Product Name | CAT5E SFTP 24AWG 0.5mm BARE COPPER Lan CABLE PVC PE DOUBLE Jacket | |
| Inner conductor | Material | BARE COPPER |
| Diameter | 0.50 ± 0.01mm (24AWG) | |
| Insulation(Dielectric) | Material | Color-coded PE (Polyethylene) |
| Thickness | ≥ 0.18mm | |
| Diameter | 0.91 ± 0.01mm | |
| Shielded Layer | First Layer | Aluminum Foil |
| Second Layer | Crystal Foil | |
| Third Layer | Al-Ma Alloy Braids | |
| Outer Jacket | Material | PVC+PE |
| Nominal O.D | 5.50mm ± 0.20mm | |
| Color | Gray/ Different color is available | |
| Twisted pair | N/A | Pair 1 : Blue, White / Blue |
| Pair 2 : Orange, White / Orange | ||
| Pair 3 : Green, White / Green | ||
| Pair 4 : Brown, White / Brown | ||
