Detailed description
1. CAT5E FTP cable complies with Category 5E UL444, ANSI/ TIA/ EIA 568B and ISO/ IEC 11801 Standerd.
2. Support Transmission of digital and analogue voice, data and video signal.
3. Rated Temperature: -20¡æ to 75¡æ.
|
Product Name
|

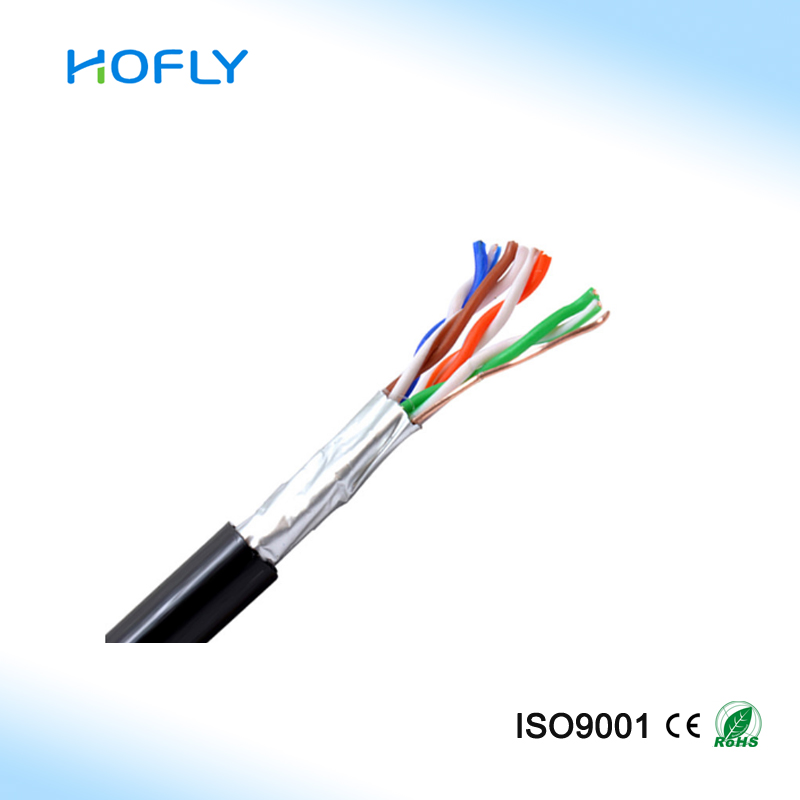

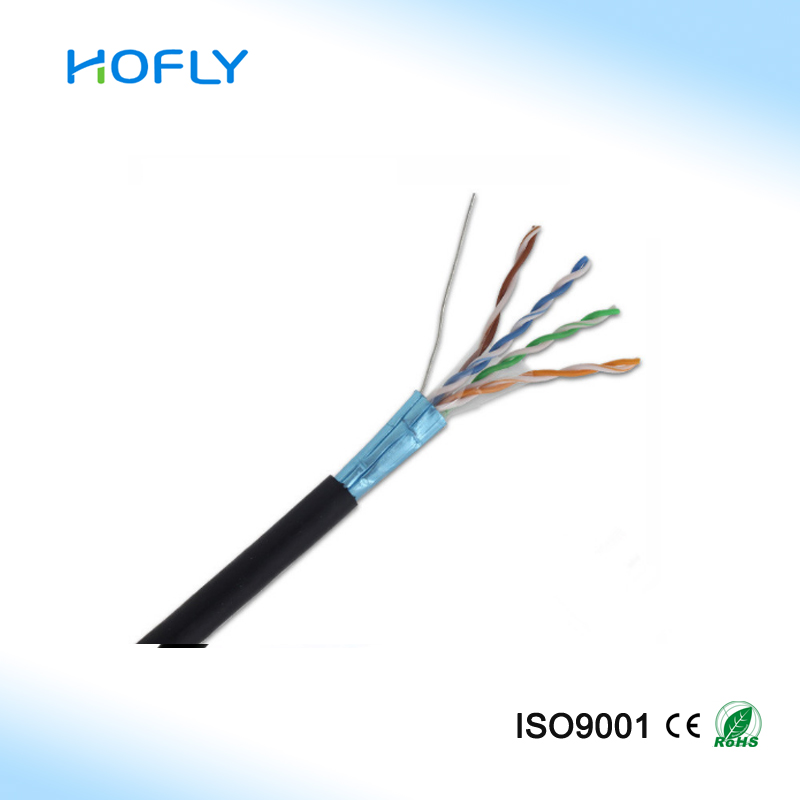

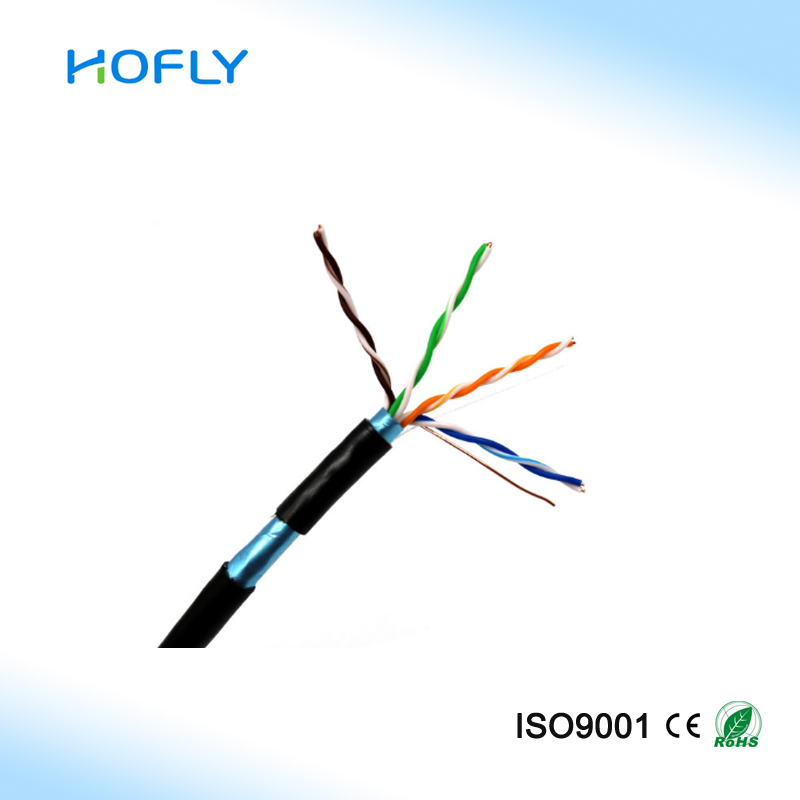

CAT5E FTP 24AWG 0.5mm BARE COPPER PASS FLUKE TEST Lan CABLE PE Jacket
|
||
|
Inner Conductor
|
Material
|
BARE COPPER
|
|
|
Diameter
|
0.5mm ± 0.01mm ( 24AWG )
|
||
|
Insulation ( Dielectric )
|
Material
|
Color-coded PE (Polyethylene)
|
|
|
Thickness
|
≥ 0.18mm
|
||
|
Diameter
|
0.91mm ± 0.01mm
|
||
|
Twisted Pair
|
N/A
|
Pair 1: Blue, White/ Blue
|
|
|
Pair 2: Orange, White/ Orange
|
|||
|
Pair 3: Green, White/ Green
|
|||
|
Pair 4: Brown, White/ Brown
|
|||
|
Outer Jacket
|
Material
|
HDPE (Rip code, Optional)
|
|
|
Thickness
|
≥ 0.55mm
|
||
|
Nominal O.D
|
5.20mm ± 0.10mm
|
||
